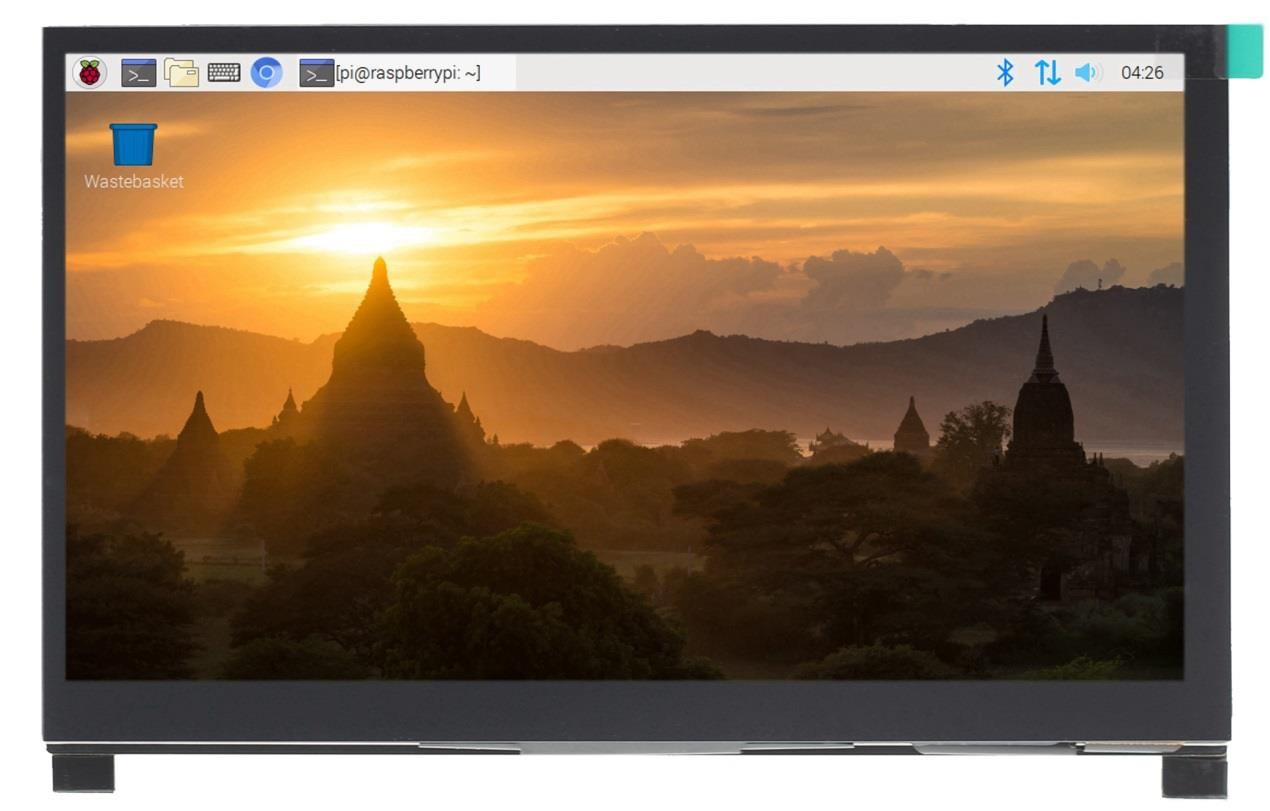

YQX28-8 8 Inch IPS HDMI LCD Display with 1280*800 Resolution 5 Point Capacitive Touch Screen
Product Features
- 8.0 inch IPS high-definition display screen
| Wide viewing angle |
True color reproduction |
Excellent picture quality |
- 1280×800 resolution
| HD vision |
Exceptionally detailed display |
- New touch panel
| Tempered glass cover |
6H hardness rating for durability and scratch resistance |
- High sensitivity capacitive touch screen
| Precise touch response |
Supports up to 5 simultaneous touch points |
- HDMI interface
| HD input capability |
Functions as HDMI display |
- Multi-device compatibility
| Works with Raspberry Pi, Banana Pi, and BeagleBone development boards |
| Compatible with PS4, XBOX360, Nintendo Switch and other game consoles |
| Connects to TV boxes and digital cameras (display only) |
- Multi-system support
| Raspbian, Kali Linux, Ubuntu, Kodi, Win10 IOT (touch driver-free) |
| Windows 7/8/10/11 (touch driver-free) |
- CE and ROHS certified
Technical Specifications
| Size |
8.0 inch |
Screen Type |
IPS Screen |
| SKU |
MPI8008 |
Resolution |
1280*800 dots |
| Backlight Adjustment |
Key Switch Adjustment |
Touch |
5 point capacitive |
| Power |
MicroUSB (5V) |
Module overall power |
3.79W(100% brightness) |
| Dimensions |
197*132*12mm |
Video Input |
HDMI |
| Audio Output |
3.5mm Audio Interface |
Packaging size |
234*164*62 |
| Weight |
610 g (including packaging) |
|
|
Product dimension
Interface Diagram
Working with Raspberry Pi
Step 1. Download the Official image
1) Download Raspbian Official Image
Download URL: https://www.raspberrypi.org/downloads/raspbian/
Username: pi Password: raspberry
2) Download Ubuntu Mate Official Image
Download URL: https://ubuntu-mate.org/download/
The user name and password can be set by yourself after startup
3) Download Kail Official Image
Download URL: https://www.offensive-security.com/kali-linux-arm-images/
Username: kali (The old version is root) Password: kali(The old version is toor)
4) Download Retropie Official ImageDownload URL: https://retropie.org.uk/download/
Username: pi Password: raspberry
Step 2. Brun Official Image
1) Download and install tool software(If they are already installed,this step can be ignored)
SD card format software SDCard Formatter download URL :
https://www.sdcard.org/downloads/formatter_4/
Image burning software win32diskimager download URL:
https://sourceforge.net/projects/win32diskimager/
2) Format SD card
Insert the SD card into the card reader -> Insert the card reader into the computer -> Open the SDFormatter software -> Select SD card ->Select quick format (generally select quick format, other options can beselected according to your own needs) -> Click the Format button ->Select "Yes" -> Click OK after formatting.
3) Brun Image

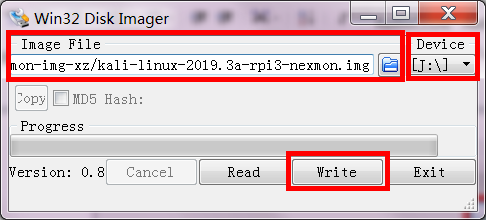

Open the win32diskimager software -> Select the image file to be burned (xxx.img ) -> Select SD card -> Click the "write" button ->Select "Yes" -> Wait for the burning to complete (the whole process lasts about 10 minutes)
Step 3. Modify the “config.txt” configuration file
Open the “config.txt” file in the root directory of SD card on the computer,
Add the following at the end of the file, save and exit.
|
max_usb_current=1
hdmi_force_hotplug=1
config_hdmi_boost=7
hdmi_group=2
hdmi_mode=87
hdmi_drive=1
display_rotate=0
hdmi_cvt 1280 800 60 6 0 0 0
|
Step 4. Insert SD card
After the above steps are completed, pop up the SD card on the computer
and insert it into the SD card slot on the back of the raspberry pie.
Step 5. Running system

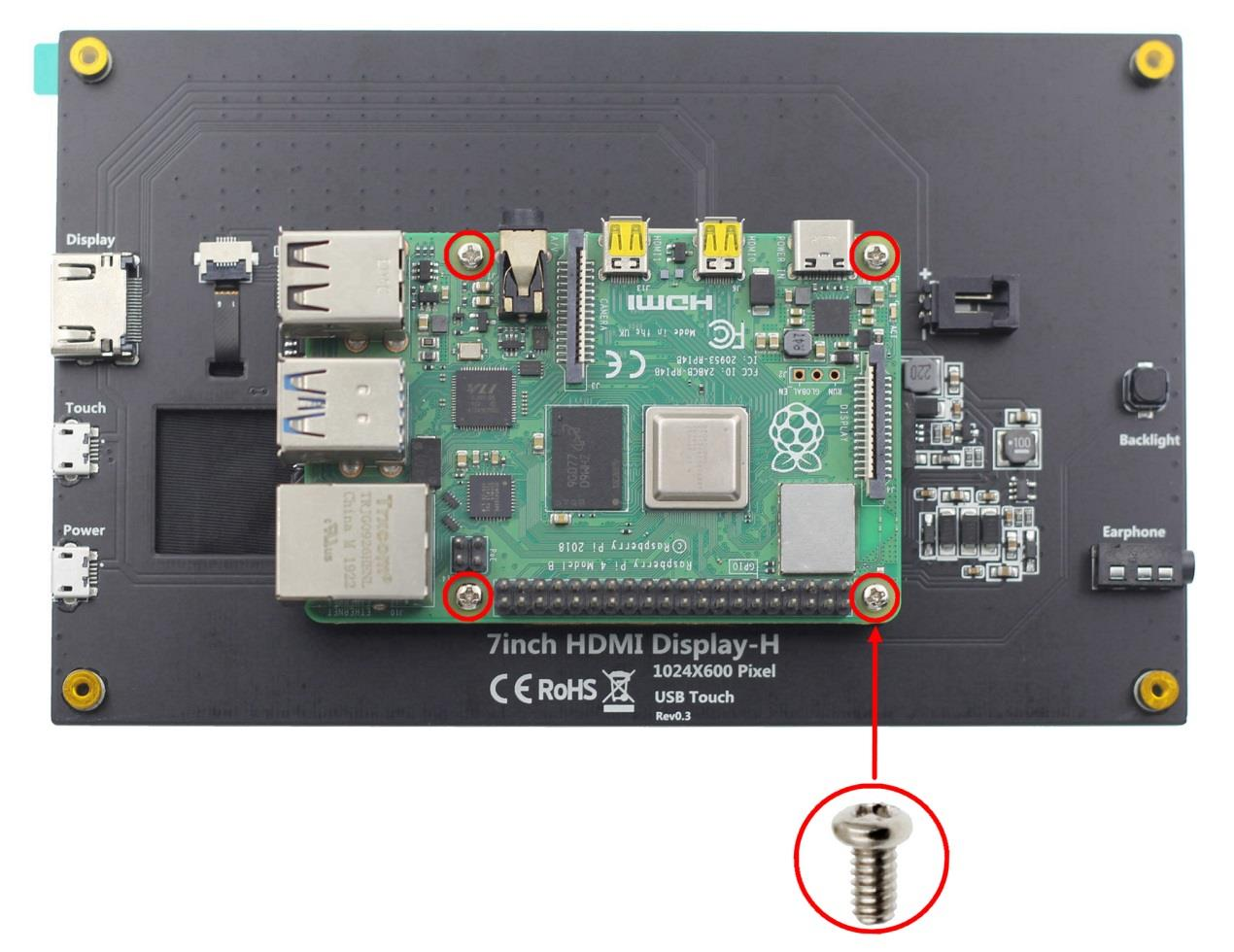

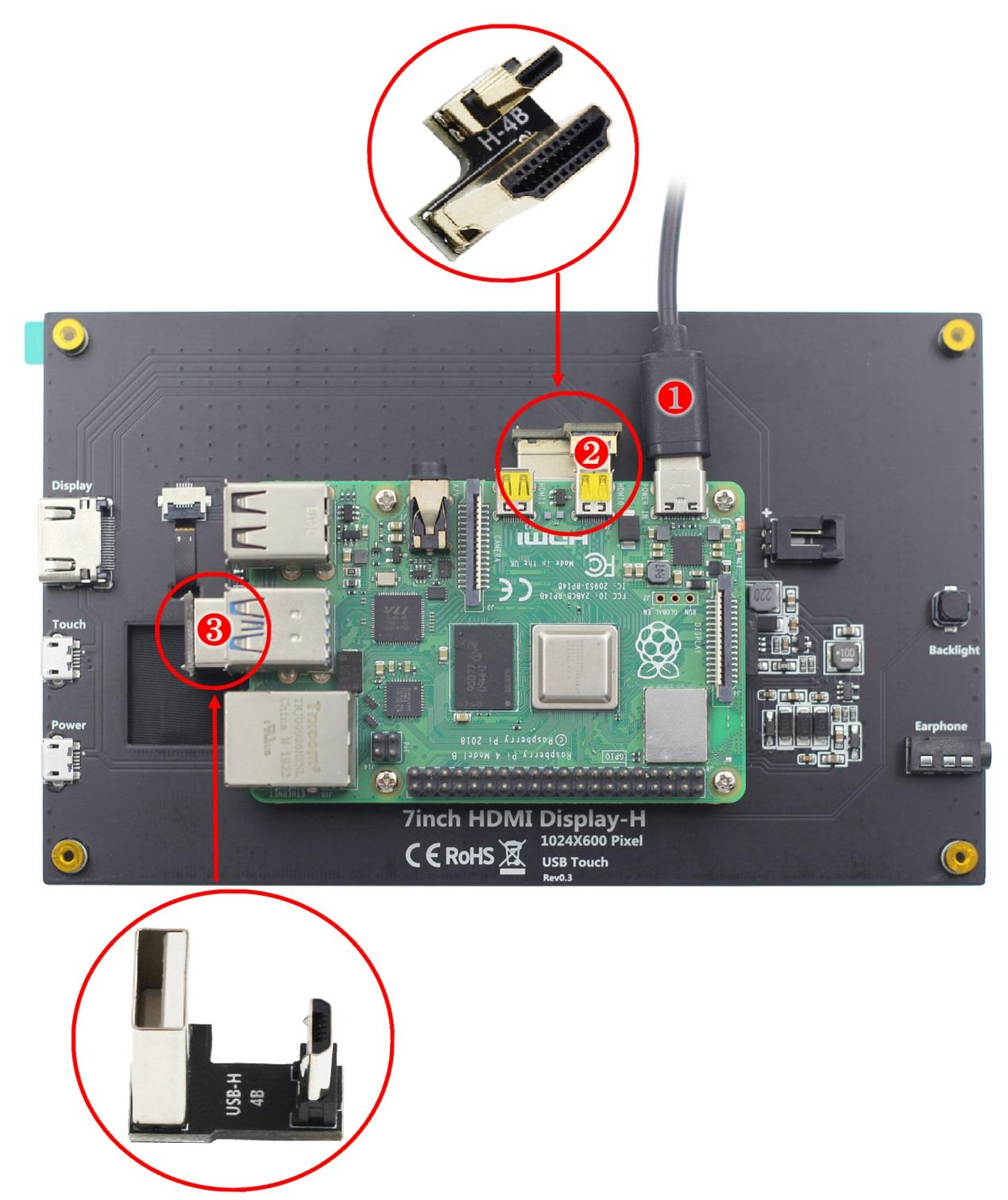

Connect the HDMI interface and touch interface of the display screen to
raspberry pie, connect the power supply of raspberry pie,
and start the machine to display and touch normally..
Work as HDMI touch monitor
This product can be used as the HDMI touch monitor of Windows computer,only need to connect HDMI interface and TOUCH interface, can normally display and support up to five points touch.
