YQX6-7A 7 Inch 1024x600 Capacitive Touch Screen Raspberry Pi Compatibility

  • 1
  • 2
  • 3

Type : 7 Inch 1024x600 Capacitive Touch Screen

Display Size : 7 inch

Supplier Type : Factory

Video Input : HDMI

Brand Name : YZY

Model Number : YQX6-7A

Certification : CE/ROHS

Place of Origin : China

MOQ : 100

Price : $23.5-26.5/pieces

Payment Terms : T/T

Supply Ability : 50K/Month

Delivery Time : 30-45days

Packaging Details : 154*143*38(mm)/180g

Contact Now

YQX6-7A 7 Inch IPS HDMI LCD Display with 1024*600 Resolution and Raspberry Pi Compatibility
Product Overview

7-inch IPS TFT touch screen with 1024*600 resolution, 5-point capacitive touch, and compatibility with Raspberry Pi and other mini PCs.

Key Features
  • 7-inch standard display with 1024*600 hardware resolution (supports up to 1920*1080 via software configuration)
  • 5-point capacitive touch screen
  • Independent backlight control for power saving
  • Compatible with Raspberry Pi, BB Black, Banana Pi, and other mini PCs
  • Functions as a general-purpose HDMI monitor for computers
  • Supports multiple operating systems including Raspbian, Ubuntu, Kali-Linux, Kodi, and Windows 10 IoT
  • CE and RoHS certified
Technical Specifications
Size 7.0 inch
SKU MPI7002
Resolution 1024*600 dots
Touch 5 point capacitive touch
Dimensions 164.9 * 124.27 mm
Weight 380 g (including packaging)
Hardware Diagram
YQX6-7A 7 Inch 1024x600 Capacitive Touch Screen Raspberry Pi Compatibility
  1. Backlight Power switch: Controls the backlight on/off for power saving
  2. USB Touch/power supply connector: For power supply and touch output (both ports have identical functionality)
  3. HDMI interface: Connects motherboard to LCD monitor for HDMI transmission
Setup Instructions for Raspbian/Ubuntu Mate/Win10 IoT Core
Step 1: Install Raspbian Official Image
  • Download the latest image from the official source
  • Install the system following official tutorial steps
Step 2: Modify config.txt

After installation, open the config.txt file in the Micro SD Card root directory and add the following code at the end:

max_usb_current=1
hdmi_force_hotplug=1
config_hdmi_boost=7
hdmi_group=2
hdmi_mode=1
hdmi_mode=87
hdmi_drive=1
display_rotate=0
hdmi_cvt 1024 600 60 6 0 0 0
Step 3: Connect Hardware
  • Insert the Micro SD Card to Raspberry Pi
  • Connect Raspberry Pi and LCD with HDMI cable
  • Connect USB cable between Raspberry Pi and LCD
  • Power on Raspberry Pi (use full 2A power supply)
Display Rotation Configuration
Rotate Display Direction
  1. Open config.txt: sudo nano /boot/config.txt
  2. Add rotation parameter (0: 0°; 1: 90°; 2: 180°; 3: 270°)
  3. Save changes and reboot: sudo reboot
Rotate Touch Direction
  1. Install libinput: sudo apt-get install xserver-xorg-input-libinput
  2. Create xorg.conf.d directory: sudo mkdir /etc/X11/xorg.conf.d
  3. Copy configuration file: sudo cp /usr/share/X11/xorg.conf.d/40-libinput.conf /etc/X11/xorg.conf.d/

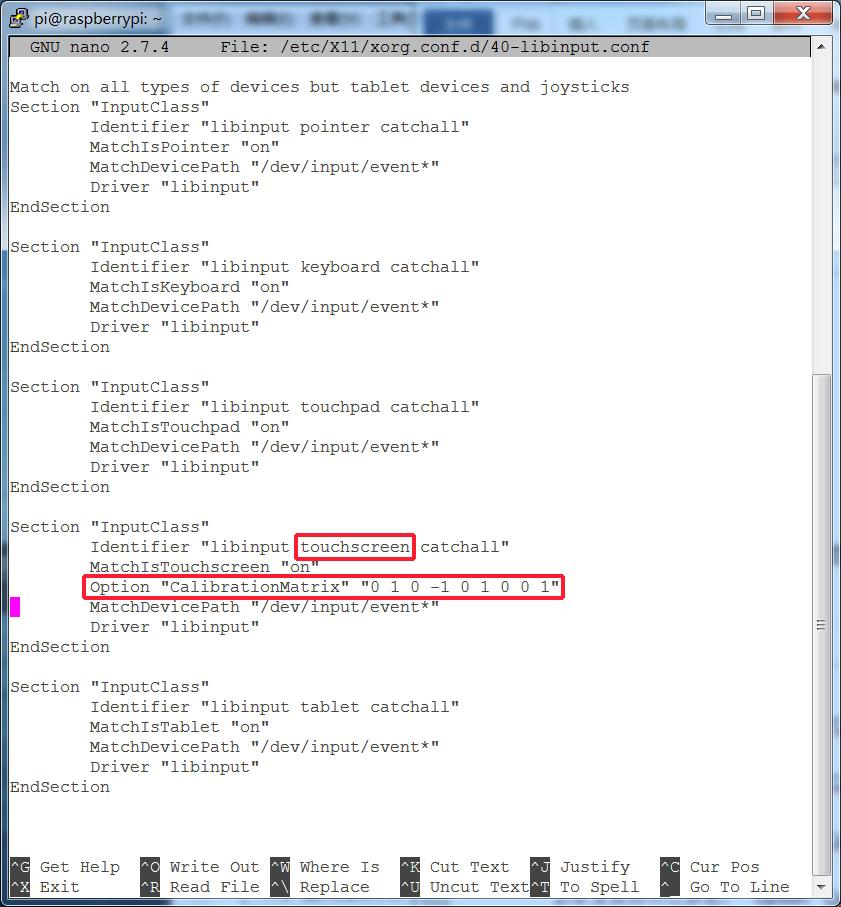

  4. Edit configuration file: sudo nano /etc/X11/xorg.conf.d/40-libinput.conf
  5. Add calibration matrix for your rotation angle
  6. Reboot: sudo reboot
Calibration Matrix Parameters:
0°: "1 0 0 0 1 0 0 0 1"
90°: "0 1 0 -1 0 1 0 0 1"
180°: "-1 0 1 0 -1 1 0 0 1"
270°: "0 -1 1 1 0 0 0 0 1"
YQX6-7A 7 Inch 1024x600 Capacitive Touch Screen Raspberry Pi Compatibility
Using as PC Monitor
  • Connect computer HDMI output to LCD HDMI interface
  • Connect LCD's USB Touch interface to device USB port
  • For initial testing, use LCD as the only connected monitor
