Portable 10.1 Inch Capacitive Touch Screen 1280*800 IPS LCD Display Module

Brand Name : YZY

Model Number : YQX28-101A

Certification : CE/ROHS

Place of Origin : China

MOQ : 100

Price : $52-58/pieces

Payment Terms : T/T

Supply Ability : 50K/Month

Delivery Time : 30-45days

Packaging Details : 295*195*70mm/892g

Type : 10.1 Inch Capacitive Touch Screen

Display Size : 10.1 inch

Supplier Type : Factory

Video Input : HDMI

Contact Now

YQX28-101A 10.1 Inch 1280*800 IPS LCD Display Module with Capacitive Touch Portable Product

Product Overview

The YQX28-101A is a high-quality 10.1-inch IPS LCD display module featuring 1280*800 resolution and 5-point capacitive touch functionality. This versatile display is designed for portable applications and supports multiple input sources.

Key Features

10.1-inch IPS panel with wide viewing angles
HDMI and VGA input with switchable video sources
Native 1280*800 resolution (supports up to 1920*1080 input)
5-point capacitive touch with toughened glass (6H hardness)
Built-in stereo speakers and 3.5mm headphone output
On-screen controls for menu, brightness, volume, and input switching
Compatible with Raspberry Pi, Banana Pi, and other mini PCs
Works with Windows 7/8/10/11 (touch driver-free)
Universal HDMI monitor for gaming consoles (Xbox, PS4, Switch)
CE and RoHS certified for quality assurance

Technical Specifications

Size	10.1 inch	Screen Type	IPS Screen
SKU	MPI1009	Resolution	1280*800 dots
Backlight Adjustment	Key Switch Adjustment	Touch	5 point capacitive
Power	MicroUSB (5V)	Video Input	Mini HDMI & VGA
Dimensions	239.4157.412.3mm	Packaging size	29519570mm
Active display	216.57*135.36mm	Weight	938 g (including packaging)

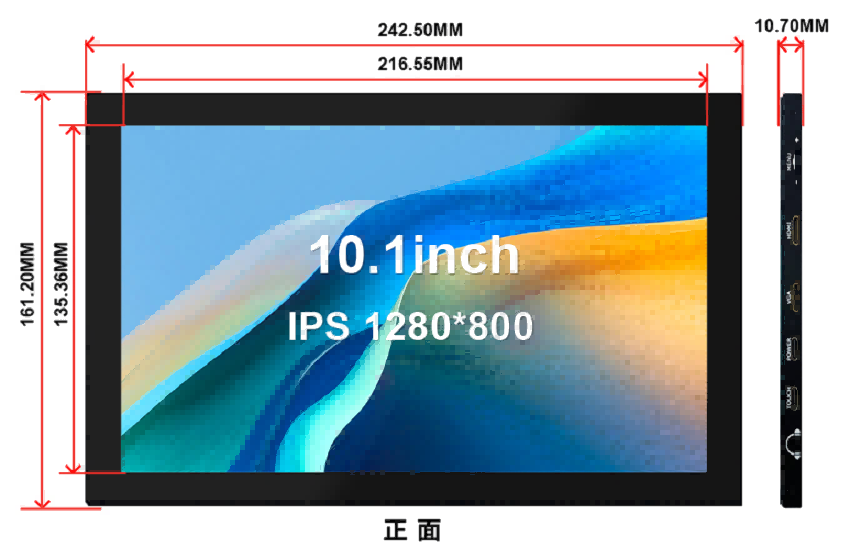

Product Dimensions

Portable 10.1 Inch Capacitive Touch Screen 1280*800 IPS LCD Display Module

Detailed dimensional drawing of the display module

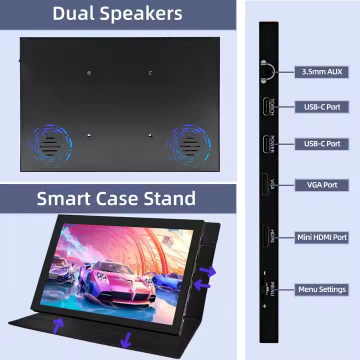

Interface Diagram

Display module interface connections and ports layout
