YBC032EGS-Q2 3.2-inch IPS SPI Display LCD Module
High-performance 3.2-inch SPI display LCD module featuring 240×320 resolution and SPI interface for embedded applications with capacitive touch screen.
Product Overview
MSP3222 and MSP3223 are two 3.2-inch IPS color LCD display modules, with MSP3222 without a touch screen and MSP3223 with a capacitive touch screen. The display module adopts a 4-wire SPI interface, which only requires 5 IOs to achieve display. The 240x320 standard definition resolution can be applied to various products that require screen display function.

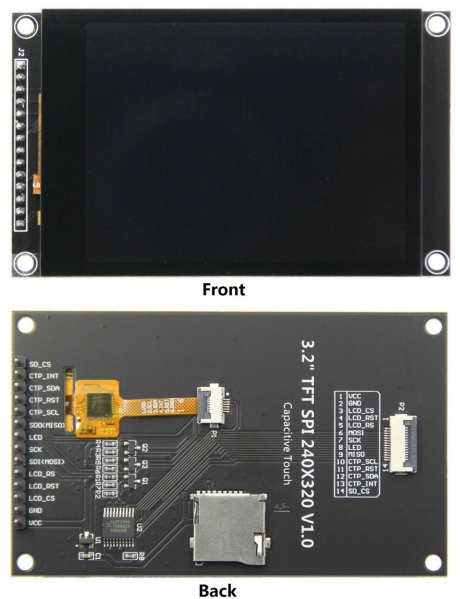

YBC032EGS-Q2 3.2-inch IPS SPI Display LCD Module with 240×320 Resolution and Capacitive Touch Screen
Key Features
  • 3.2" color screen with 240x320 resolution of 65K colors and rich display colors
  • Upgrade adopts IPS full view panel with good visual angle
  • On board level conversion circuit, compatible with 5V and 3.3V MCU
  • Adopting a 4-wire SPI serial bus to save I/O pins
  • Optional capacitive touch/no touch function for modules
  • Module input supports 2.54 pin interface and FPC extension interface
  • Equipped with micro TF card slot for easy storage expansion
  • Provide rich example learning programs (ESP32/STM32/UNO/C51/CH32)
  • Provide low-level driver technical support and update WIKI information online
  • Multiple tests for module aging can meet military level standards, supporting long-term stable work
Technical Specifications
Specification Details
Size 3.2 inch
SKU MSP3222 (No Touch); MSP3223 (With Capacitive Touch)
Resolution 240×320 dots
Module Interface 4-wire SPI interface
Display Color 262K
Active Area 48.60(W)×64.80(H)
Dimensions NO Touch Screen: 55.04(W)×90.5(H)×12.88(D) (including Pin Header)
Have Touch Screen: 55.24(W)×90.5(H)×14.73(D) (including Pin Header)
View Angle ALL 0'CLOCK
VCC Power Voltage 5V
Luminance 230 Cd/m² (no touch); 190 Cd/m² (with touch)
Panel Driver IC ILI9341V
Touch Screen Type Capacitive Touch Screen
Driver IC FT6336G
Power Consumption 0.4W
Interface 14P 2.54mm spacing Header and 0.5mm spacing FPC seat
Logic IO Port Voltage 5V (TTL)
Weight No touch: 46g / With touch: 60g

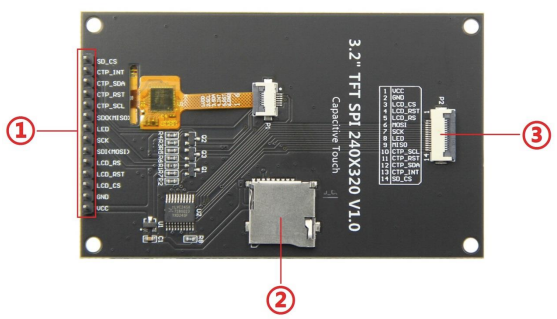

Interface Description
YBC032EGS-Q2 3.2-inch IPS SPI Display LCD Module with 240×320 Resolution and Capacitive Touch Screen YBC032EGS-Q2 3.2-inch IPS SPI Display LCD Module with 240×320 Resolution and Capacitive Touch Screen
Number Pin Label Description
1 VCC Power positive
2 GND Power ground
3 LCD_CS LCD selection control signal, Low level active
4 LCD_RST LCD reset control signal, Low level reset
5 LCD_RS LCD command / data selection control signal High level: data, low level: command
6 SDI(MOSI) SPI bus write data signal (SD card and LCD screen used together)
7 SCK SPI bus clock signal (SD card and LCD screen used together)
8 LED LCD backlight control signal (If you need control, please connect the pins. If you don't need control, you can skip it)
9 SDO(MISO) SPI bus read data signal (SD card and LCD screen used together)
10 CTP_SCL Capacitive touch screen IIC bus clock signal (modules without touch screens do not need to be connected)
11 CTP_RST Capacitor touch screen reset control signal, low-level reset (modules without touch screens do not need to be connected)
12 CTP_SDA Capacitive touch screen IIC bus data signal (modules without touch screens do not need to be connected)
13 CTP_INT Capacitor touch screen IIC bus touch interrupt signal, when generating touch, input low level to the main control (modules without touch screens do not need to be connected)
14 SD_CS SD card selection control signal, low level active (without SD card function, can be disconnected)

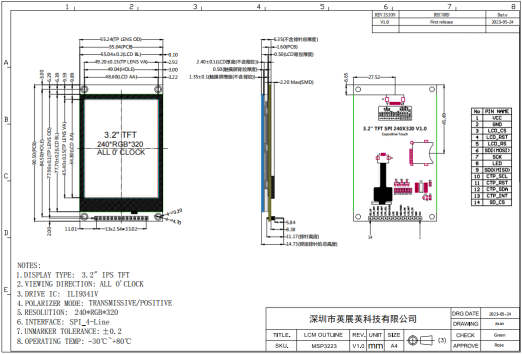

Product Dimensions
YBC032EGS-Q2 3.2-inch IPS SPI Display LCD Module with 240×320 Resolution and Capacitive Touch Screen
