4-inch ESP32 Development Board with 320x480 Resolution Smart Display Screen Featuring WiFi Bluetooth and Resistive Touch

Brand Name : YZY

Model Number : YBR040GJE-Q1(E32R40T)/YBN040GJE-Q1(E32N40T)

Certification : CE,RoHS

Place of Origin : China

MOQ : 500 pcs

Price : $12.99-15.99/Piece

Payment Terms : T/T

Supply Ability : Up to 5,000 pcs/day

Delivery Time : 30 Working days

Size : 4.0 inch

Resolution : 320*480 Pixels

Touch Type : No Touch / Resistive Touch(Optional)

Applications : IoT Devices, HMI, Education, Prototyping

Contact Now

YBR040GJE-Q1(E32R40T) 4-inch TN TFT ESP32 Development Board with WiFi and Bluetooth and 320*480 Resolution Smart Display Screen

Product Overview

The E32R40T and E32N40T are 4.0-inch display modules featuring ESP32-32E module main control. The E32R40T includes a resistive touch screen, while the E32N35T does not. Both products utilize the ST7796 screen driver IC with 320*480 resolution and can connect to various peripherals including I2C, SPI interface devices, audio speakers, lithium batteries, MicroSD cards, and serial ports. The E32R35T's touch functionality enables convenient DIY projects while supporting IoT and human-computer interaction development.

4-inch ESP32 Development Board with 320x480 Resolution Smart Display Screen Featuring WiFi Bluetooth and Resistive Touch

Key Features

ESP32-32E module for easy development with extensive resources
3.95/4.0-inch color screen with 320*480 resolution supporting 262K colors (RGB666)
Abundant interfaces for connecting various peripherals (I2C, SPI, UART)
External speaker support for audio playback
RGB tricolor indicator light for diverse status indications
Resistive touch screen for convenient human-computer interaction
Standard TYPE-C interface for easy programming and power supply
Micro TF card slot for storage expansion
External lithium battery support for portability
Battery charging management circuit for safe operation
Comprehensive example programs for easy learning
Underlying driver technical support with online WIKI materials
Military-grade standards compliance through multiple aging tests

Technical Specifications

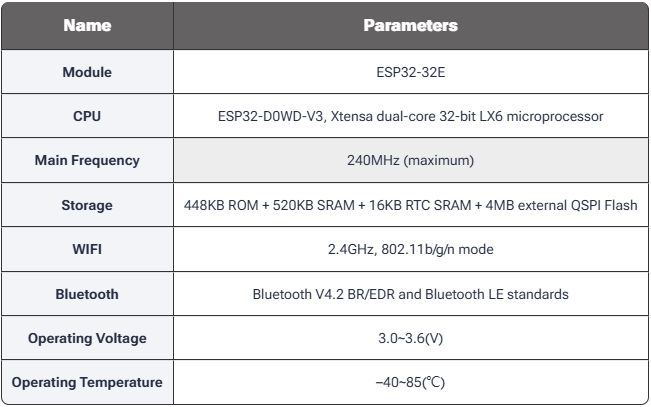

ESP32 Main Control Parameters

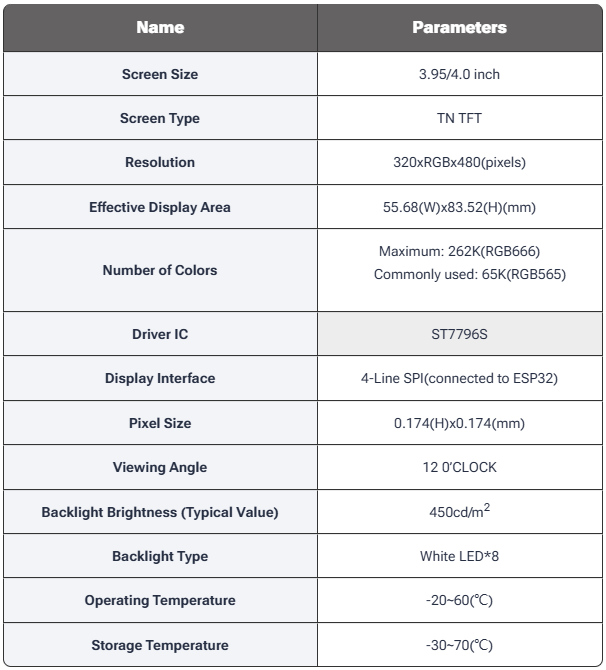

TFT Display Parameters

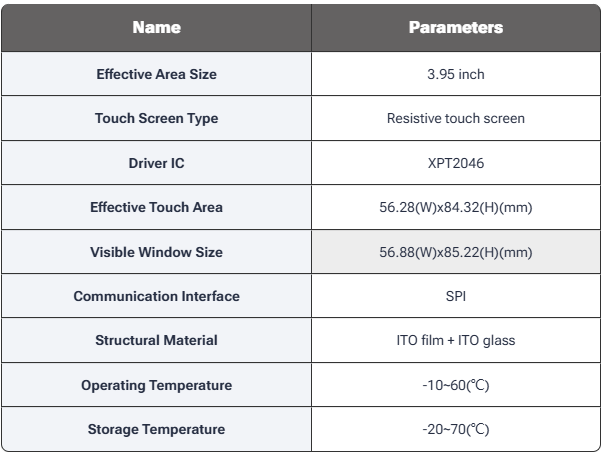

Touch Screen Parameters

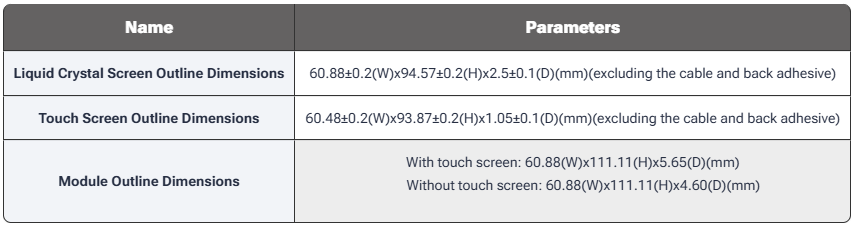

Size Parameters

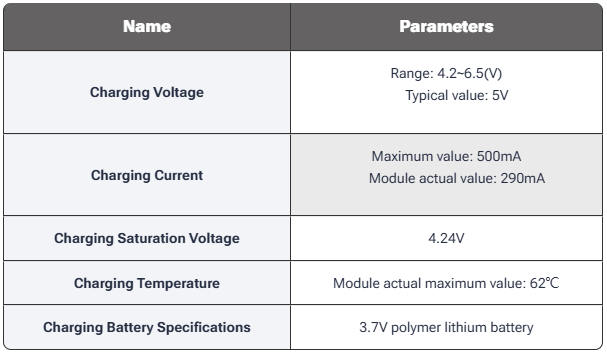

Battery Charging Parameters

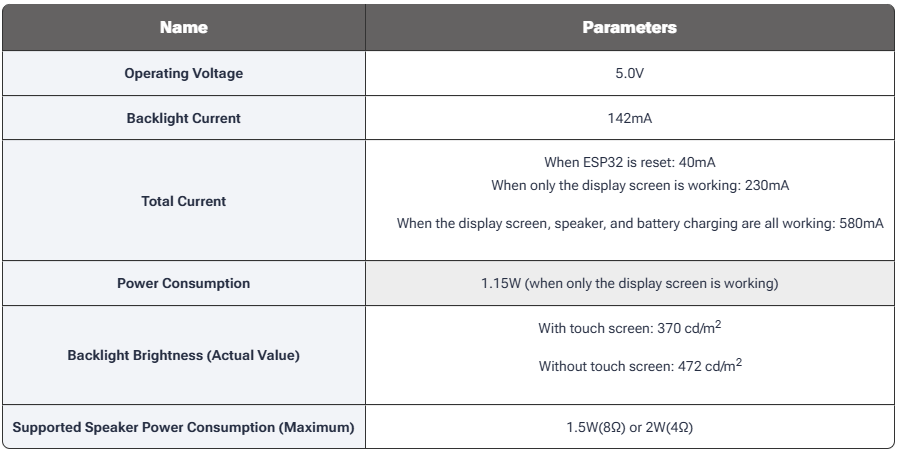

Electrical Parameters

Other Parameters

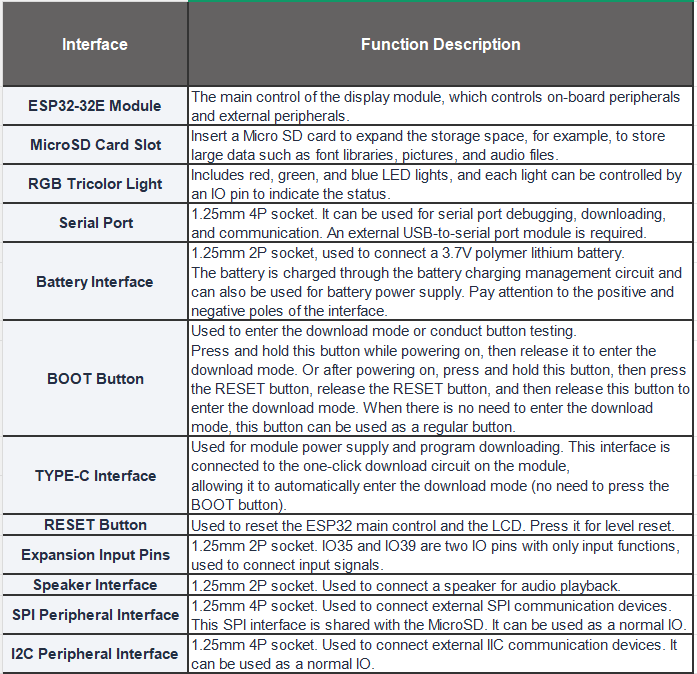

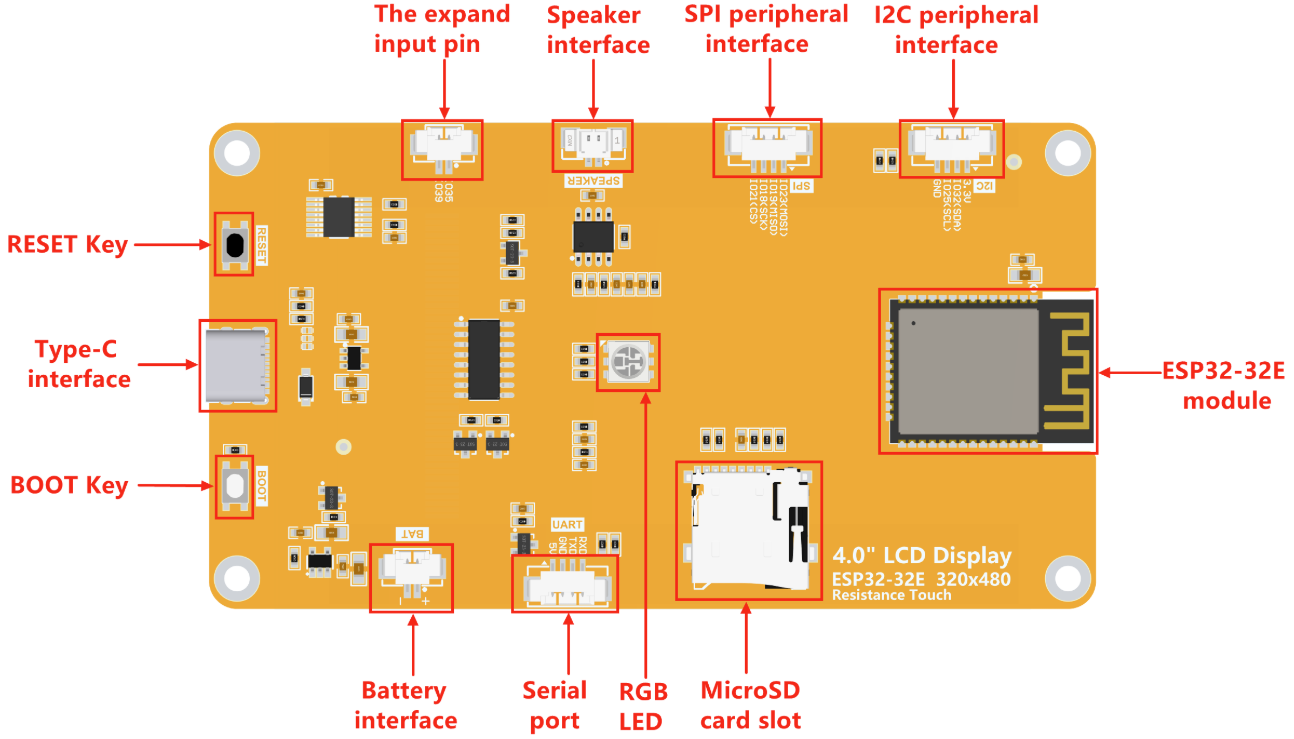

Product Interface

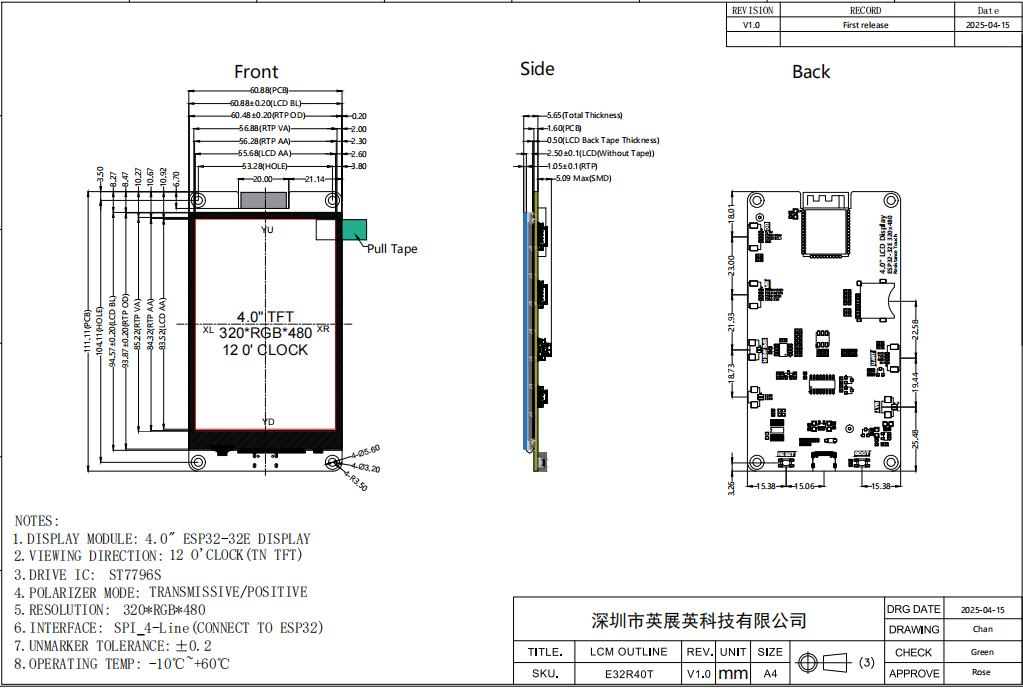

Product Dimensions

Quality Assurance

This module has undergone comprehensive aging tests and multiple inspections to meet military-grade standards, ensuring stable and long-term operation in demanding environments.
