3.5-inch ESP32 Development Board with 320*480 Resolution Smart Display Screen Featuring WiFi and Bluetooth

  • 1
  • 2
  • 3

Brand Name : YZY

Model Number : YBR035GJE-Q1(E32R35T)/YBN035GJE-Q1 （E32N35T）

Certification : CE,RoHS

Place of Origin : China

MOQ : 500 pcs

Price : $12.99-15.99/Piece

Payment Terms : T/T

Supply Ability : Up to 5,000 pcs/day

Delivery Time : 30 Working days

Size : 3.5 inch

Resolution : 320*480 Pixels

Touch Type : No Touch / Resistive Touch(Optional)

Applications : IoT Devices, HMI, Education, Prototyping

Contact Now

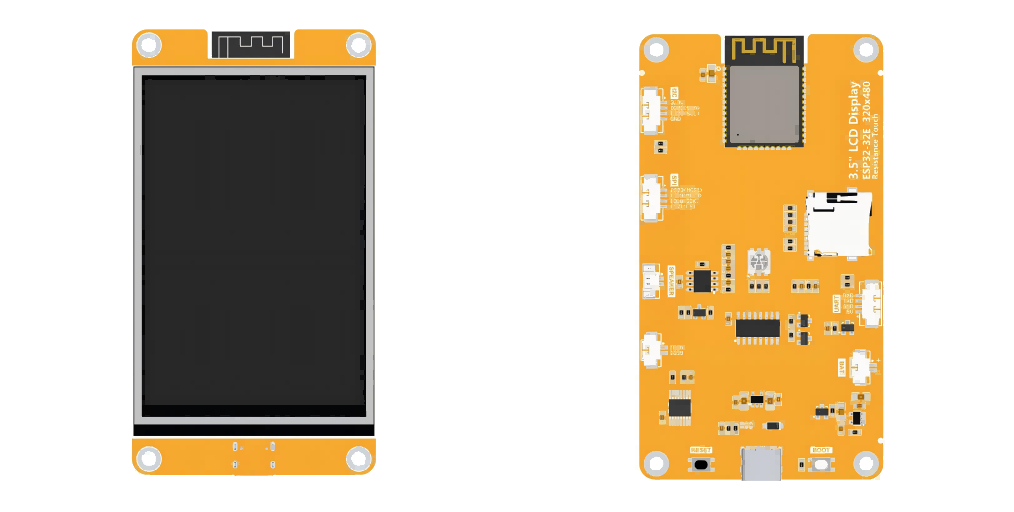

YBR035GJE-Q1 3.5-inch TN TFT ESP32 Development Board
3.5-inch ESP32 Development Board with WiFi and Bluetooth and 320×480 Resolution Smart Display Screen
Product Overview
The E32R35T and E32N35T are two 3.5-inch display modules featuring ESP32-WROOM-32E main control. The E32R35T includes a resistive touch screen while the E32N35T does not. Both products utilize the ST7796 screen driver IC with 320×480 resolution and support connection to various peripherals including I2C, SPI interface devices, audio speakers, lithium batteries, MicroSD cards, and serial ports. The E32R35T's touch functionality provides enhanced convenience for DIY projects while meeting requirements for IoT and human-computer interaction development.
Key Features
  • Integrated ESP32-WROOM-32E module for easy development with abundant resources
  • 3.5-inch color screen with 320×480 resolution supporting up to 262K colors (RGB666)
  • Rich interface options for connecting various peripherals (I2C, SPI, UART, etc.)
  • Support for external speakers for audio playback
  • RGB three-color indicator for comprehensive status display
  • Resistive touch screen for intuitive human-machine interaction
  • Standard TYPE-C interface for easy programming and power supply
  • Micro TF card slot for storage expansion
  • Support for external lithium batteries for portable operation
  • Integrated battery charging management circuit for safe operation
  • Comprehensive example programs for easy learning
  • Low-level driver technical support with online WIKI updates
  • Multiple aging tests meeting military standards for long-term stable operation
3.5-inch ESP32 Development Board with 320*480 Resolution Smart Display Screen Featuring WiFi and Bluetooth 3.5-inch ESP32 Development Board with 320*480 Resolution Smart Display Screen Featuring WiFi and Bluetooth
ESP32 Main Control Parameters
Item Parameters Unit
Module ESP32-32E -
CPU ESP32-D0WD-V3, Xtensa dual core 32-bit LX6 microprocessor -
Frequency 240MHz (Max) -
Memory 448KB ROM + 520KB SRAM + 16KB RTC SRAM + 4MB external QSPI Flash -
WIFI 2.4GHz, 802.11b/g/n modes -
Bluetooth Bluetooth V4.2 BR/EDR and Bluetooth LE standards -
Operating Voltage 3.0~3.6 V
Operating Temperature -40~85 ℃
TFT Display Parameters
Item Parameters Unit
Panel Size 2.8 Inch
Panel Type TN TFT -
Resolution 320*480 Pixels
Active Area 48.96(W)×73.44(H) mm
Number of Colors Max: 262K (RGB666) Commonly used: 56K (RGB565) -
Driver IC ST7796U -
Display Interface 4-Line SPI (Connect to ESP32) -
View Angle 12'CLOCK -
Brightness (TYP) 300 cd/m²
Operation Temperature -10~50 ℃
Storage Temperature -20~60 ℃
Product Dimensions
3.5-inch ESP32 Development Board with 320*480 Resolution Smart Display Screen Featuring WiFi and Bluetooth

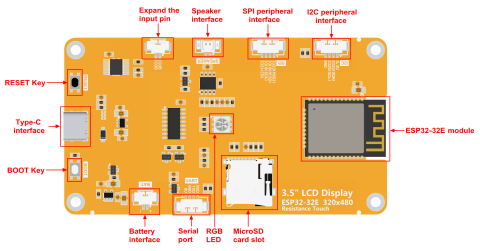

Interface Function Description
3.5-inch ESP32 Development Board with 320*480 Resolution Smart Display Screen Featuring WiFi and Bluetooth
