7 Inch Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor

Product Categories
Shenzhen YZY Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

7 Inch Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor

Brand Name : YZY

Model Number : YCXX6-7

Certification : CE、EMC

Place of Origin : Guangdong, China

MOQ : 100

Price : $105-119/pieces

Payment Terms : T/T

Supply Ability : 5K/Months

Delivery Time : 30-45Days

Packaging Details : BOX

Type : Lcm

Display Size : 7 inch

Supplier Type : Factory

Backlight Type : LED

Resolution : Optional

Brightness : 300

Operating Temperature : -10-60

Brand : BOE

Display Type : IPS

Mounting Type : Embedded

Operating System : Windows 7/8/10 / Linux/ VxWorks/ QNX/Android11/12/13

Touch : USB interface multi-touch

Audio : Realtek ACL662 Audio Controller

I/O interface : HDMI/RJ45/VGA/DC/DVI

Outline Dimension : 225.04*160.7*59mm

Power supply : DC 12V

Contact Now

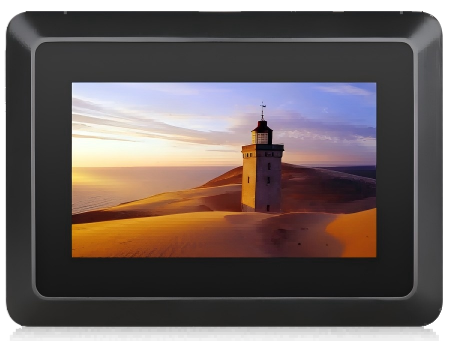

YCXX6-7 7 Inch Industrial Touch Display with Wide Temperature Range Pressure-Resistant Multi-Touch Embedded Monitor
The YCXX6-7 industrial touch display features a full aluminum alloy structure with fanless, fully enclosed design and low power consumption. This compact monitor is specifically engineered for diverse environmental conditions, ensuring long-term stable operation in harsh industrial settings.
7 Inch Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor 7 Inch Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor 7 Inch Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor
Robust Construction for Industrial Applications
The compact design supports multiple installation methods. Built with military-grade aluminum alloy structure and efficient heat dissipation design (compatible with fans), this monitor ensures stable operation in harsh environments while increasing service life, safety, and efficiency with zero noise operation.
Key Features

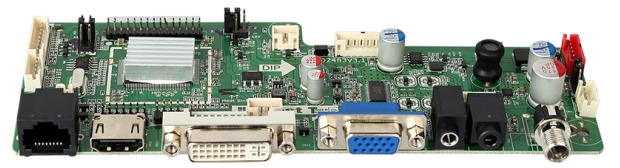

  • RTD2483 Chip for high-performance processing
  • Full military-grade aluminum alloy construction for high temperature resistance, corrosion resistance, and pressure resistance
  • Fine workmanship and long service life suitable for harsh environments
  • Efficient heat dissipation design compatible with fan cooling
  • Simplified interior without redundant wiring for uninterrupted operation
  • Capacitive touch screen with intuitive operation and high durability
  • Compatible with resistive touch technology
  • Comprehensive input and output interfaces for connecting various equipment
7 Inch Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor
Technical Specifications
Screen Parameters
Parameter Specification
Size 7"
Resolution 1024×600
View Angle 75/75/70/75 (L/R/U/D)
Color Chroma: 16.7M
Brightness 300 cd/m²
Contrast 500:1
Response Time 6.5 ms
Display Area 154.214 × 85.92 mm
Pixel Pitch 0.1506×0.1432 (H×V)
Touch Screen & Connectivity
Parameter Specification
Touch Type Capacitive touch screen
Resolution 500DPI
Input Method Handwriting or capacitive pen
Surface Hardness 7H
Calibration Supported
HDMI Support HDMI data output, up to 1080P
RJ45 Touch interface
VGA 1 port
DVI 1 port
Earphone Jack 3.5mm standard interface
Hardware Configuration
Component Specification
CPU RTD2483
System Language English, Chinese
Video Input PC-RGB: Format up to 1920*1080@60HZ, Color 16bit, 24bit, 32bit
Key Functions AUTO, MENU, POWER, LEFT, RIGHT
Power Specifications
Parameter Specification
DC Input DC 12~24V
Power Consumption (Max) 12W
Power Input AC 100-240V 50/60Hz (CCC, CE certified)
Power Output DC12V / 4A
Dimensional Information
7 Inch Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor
Overall Dimensions: 225.04 × 160.7 × 59mm (L × W × H)
